1) 额定一次电流：5，50～600A；
2) 额定二次电流：5A或1A; 33.3mA,333mV(10Ω)；
3) 精度等级：一次电流百分比在 10%-120%时，误差非线
性度≤1%，角差非线性度≤1.5°（最高可达0.5级）
4) 绝缘水平：0.5/66kV；
5) 额定频率：50/60Hz；

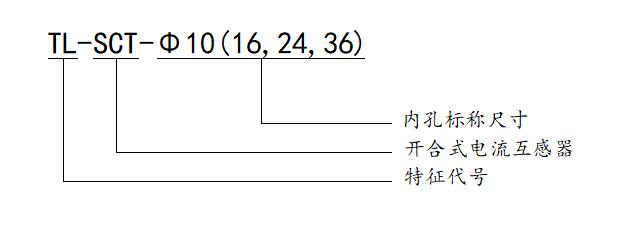

6) 产品内孔尺寸要求：φ10,φ16, φ24, φ36
7) 耐热等级：A级（105℃）；
8) 使用温度范围：-25～55℃；
9) 阻燃特性：符合 UL94-V0；
10) 产品执行标准:GB 20840.1-2010, GB 20840.2-2014, 符合IEC 61869-1, IEC 61869-2
具体技术参数见下表
|
产品型号 |
额定一次电流 Rated primary current(A) |
额定二次电流 Rated secondary current(A) |
额定负荷 Rated burden(VA) |
额定二次电流 Rated secondary current(A) |
额定负荷 Rated burden(VA) |
备 注 |
||||
|
0.5 |
1 |
3 |
0.5 |
1 |
3 |
|||||
|
TL-SCT-Φ10 |
5 |
1～50mA |
10Ω |
- |
- |
|
||||
|
10 |
||||||||||
|
20 |
||||||||||
|
25 |
||||||||||
|
30 |
||||||||||
|
50 |
5 |
|
|
0.25 |
1 |
|
|
0.25 |
|
|
|
75 |
|
|
0.5 |
|
|
0.5 |
|
|||
|
TL-SCT-Φ16 |
75 |
5 |
|
|
0.25 |
1 |
|
|
0.25 |
|
|
100 |
|
|
0.5 |
|
|
0.5 |
|
|||
|
150 |
|
|
1 |
|
|
1 |
|
|||
|
200 |
|
|
1.5 |
|
|
1.5 |
|
|||
|
TL-SCT-Φ24 |
100 |
5 |
|
|
1 |
1 |
|
|
1 |
|
|
150 |
|
|
1 |
|
|
1 |
|
|||
|
200 |
|
|
1.5 |
|
|
1.5 |
|
|||
|
300 |
|
1 |
|
|
1 |
|
|
|||
|
400 |
|
1.5 |
|
|
1.5 |
|
|
|||
|
TL-SCT-Φ36 |
200 |
5 |
|
|
2.5 |
1 |
|
|
1.5 |
|
|
300 |
|
2.5 |
|
|
1.5 |
|
|
|||
|
400 |
|
2.5 |
|
1.5 |
|
|
|
|||
|
500 |
1.5 |
|
|
1 |
|
|
|
|||
|
600 |
1.5 |
|
|
1 |
|
|
|
|||
|
|
L |
W |
H |
a |
b |
备 注 |
|
TL-SCT-10 |
24 |
26 |
40 |
10 |
10 |
|
|
TL-SCT-16 |
29 |
31 |
45 |
16 |
16 |
|
|
TL-SCT-24 |
45 |
33 |
64 |
25 |
24 |
|
|
TL-SCT-36 |
58 |
42 |
85 |
36 |
36 |
|
